| Unique references | |
|---|---|
| Ref.: | D1315 |
| S/N: | WXJ1AA0E8922 |
| Condition and comments | |
|---|---|
View test report | |
| Operating time: | 26 days and 22 hours |
| Physical specifications | |
|---|---|
| Format: | 2.5'' |
| Thickness: | 9.5 mm |
| Weight: | 93 g |
| Main informations | |
|---|---|
| Model: | WD5000BEVT-22A0RT0 |
| Date: | 10 NOV 2010 |
| Product of: | Malaysia |
| DCM • Drive Configuration Matrix | |
|---|---|
| Head type: | A |
| Media type: | S |
| DCM: on sticker | HBC TJ HB |
| DCM in ROM: from MOD 0A | |B|GSAMREO |
| DCM in SA: from MOD 02 | S|BBL|PGMSHACMRRVEKMUA |
| Configuration | 2 platters | 4 physical heads | 4 logical heads |
|---|
| Printed circuit board | |
|---|---|
| PCB: | 2060-771672-004 rev. A |
| Controller: | Marvell 88i9045-TFJ2 |
| HSA controller | TI 06A5FEW SH6601AF |

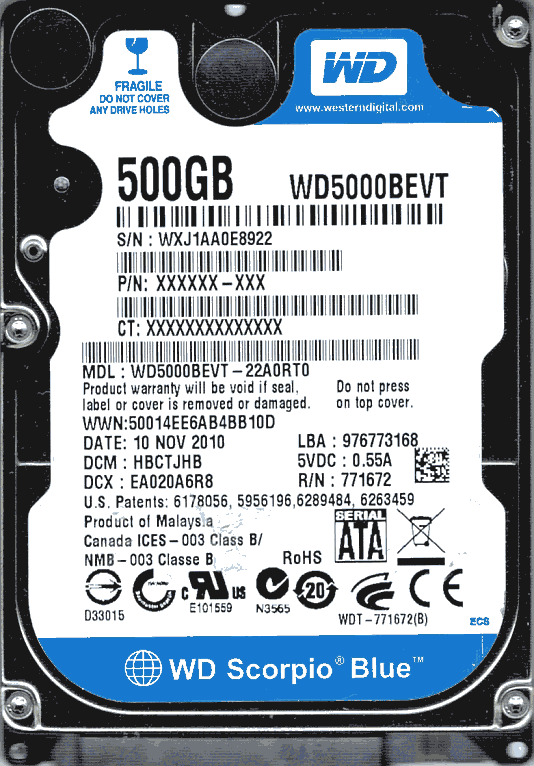

| Sticker, 1st block | |
| Sticker, 2nd block | |
| Sticker, 3rd block | |
| Sticker, 4th block | |
| Sticker, 5th block | |
| Firmwares | |
|---|---|
| Firmware: | 01.01A01 |
| Format version: | 0x0002 |
| Controller firmware version: | 14.3RW |
| Servo firmware version: | 05.1K |
| Overlay firmware version: | 14.3RW |
| Read channel firmware version: | AA01H407 |
