2.5 SATA  /  Western Digital  /  Blue (or no color)  /  Scorpio Blue  /   WD2500BEVT-°°ZCT°

WD2500BEVT-60ZCT1, DCM HBNTJHBB , Western Digital 250GB 2.5'' SATA hard drive

Compare donors

Denali
family
Other Denali's:

Short description

Unique references
Ref.:D1636
S/N: WXE309KT4818
Condition and comments
8 View test report
Operating time:21 days and 0 hours
Physical specifications
Format:2.5''
Thickness:9.5 mm
Weight:97 g

Head stack swap

Main informations
Model:WD2500BEVT-60ZCT1
Date:28 MAR 2009
Product of:Thailand
DCM • Drive Configuration Matrix
DCM:
on sticker
HBN
TJ
HBB
Configuration
2
platters		 4
physical heads

PCB & Firmware

Printed circuit board
PCB:2060-701499-000 rev. A
Sticker, 1st block
Sticker, 2nd block
Sticker, 3rd block
Sticker, 4th block
Sticker, 5th block
Firmwares
Firmware:13.01A13

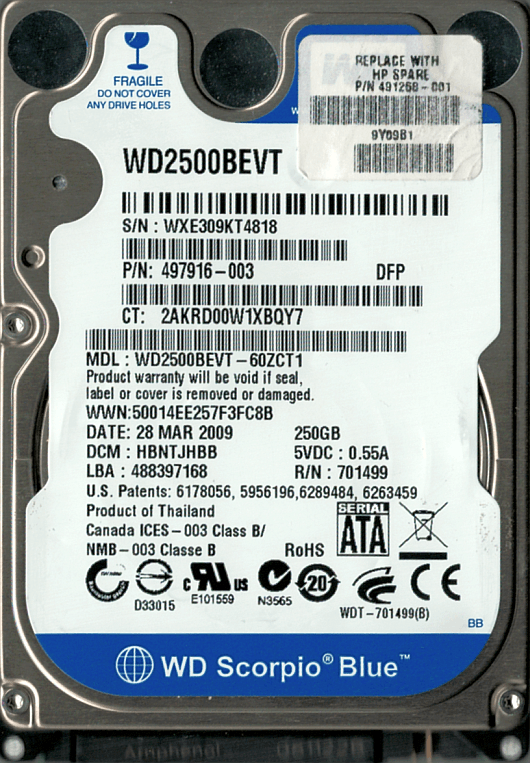

Picture of the product
Show product button
Show back face button
Product price : 39.–  CHF

Registered priority shipping to :

+    CHF
Total cost :    CHF
Pay in your currency with PayPal : Buy now
This product will be posted within 24 hours.

Compare current item

Thumbnail of WD Scorpio Blue WD2500BEVT 60ZCT1 DCM HBNTJHBB SKU_D1636.webp for sale. Click to access the details of this unique donor drive.
8
In use ~ 21 days
ModelWD2500BEVT-°°ZCT°
Submodel60ZCT1
DCMHBNTJHBB
Made inThailand
SerialWXE3…
Head mapunknown
Ref. D163639.00 CHF

 with 5 other items of the same model: Back to top

Drives 1 to 5
previous slide next_slide

Variants: WD2500BEVT-°°A23T°
