Unique references | |
---|---|
Ref.: | D1063 |
S/N: | WCANM1635511 |
Condition and comments | |
---|---|
View test report | |
Operating time: | 109 days and 18 hours |
Physical specifications | |
---|---|
Format: | 3.5'' |
Thickness: | 25 mm |
Weight: | 586 g |
Main informations | |
---|---|

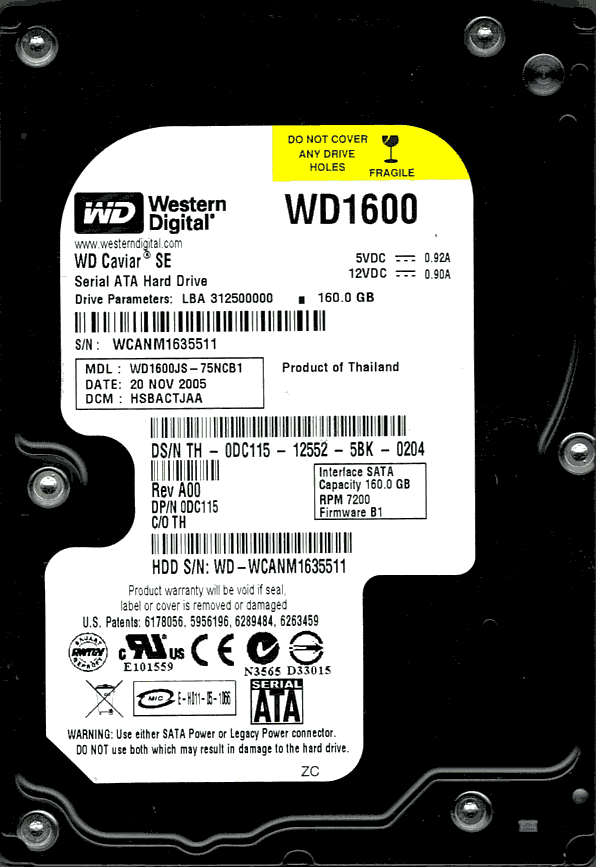

Model: | WD1600JS-75NCB1 |
Date: | 20 NOV 2005 |
Product of: | Thailand |
DCM • Drive Configuration Matrix | |
---|---|
Head type: | U |
Media type: | C |
DCM: on sticker | HS BAC TJ AA |
DCM in SA: from MOD 02 | SWBQLEPDMCHUCGRUVDKYUF |
Configuration | 2 platters | 4 physical heads | 4 logical heads |
---|
Printed circuit board | |
---|---|
PCB: | 2060-701335-005 rev. A |
Sticker, 1st block | |
Sticker, 2nd block | |
Sticker, 3rd block | |
Sticker, 4th block | |
Sticker, 5th block |
Firmwares | |
---|---|
Firmware: | B1 |
Format version: | 0x0002 |
Controller firmware version: | 10.8VE |
Servo firmware version: | 02.8A |
Overlay firmware version: | 10.8VE |
Read channel firmware version: | 02.31A |
