2.5 SATA  /  Western Digital  /  Blue (or no color)  /  Scorpio Blue  /   WD1600BEVT-°°ZCT°

WD1600BEVT-75ZCT2, DCM HBNTJHBB , Western Digital 160GB 2.5'' SATA hard drive

Compare donors

Denali
family

Short description

Unique references
Ref.:D537
S/N: WXH1A1073452
Condition and comments
8
Physical specifications
Format:2.5''
Thickness:9.5 mm
Weight:94 g

Head stack swap

Main informations
Model:WD1600BEVT-75ZCT2
Date:24 FEB 2010
Product of:Thailand
DCM • Drive Configuration Matrix
Head type:G
Media type:W
DCM:
on sticker
HBN
TJ
HBB
DCM in ROM:
from MOD 0A
|||AWGJVML
DCM in SA:
from MOD 02
S|B|L|PAMWHGCJRVVMKQUF
Configuration
1
platters
 2
physical heads
2
logical heads
Head map
Bug under review
The head map is displayed wrongly in some circumstances, especially when some heads are not in use.
We will fix this bug when we have more time to investigate it.
Please contact us if you need head map details. Thank you for your understanding.
#Heads
blue rect. = logical
MicroJogs
Hex. / Dec.
Preamp values
Hex. / Dec.
Head 0  096A / 2410
Head 1  0944 / 2372

PCB & Firmware

Printed circuit board
PCB:2060-701499-005 rev. P1
Sticker, 1st block
Sticker, 2nd block
Sticker, 3rd block
Sticker, 4th block
Sticker, 5th block
Firmwares
Firmware:T2
Picture of the product
Show product button
Show back face button
Product price : 35.–  CHF

Registered priority shipping to :

   CHF
Total cost :    CHF
Pay in your currency with PayPal : Buy now
This product will be posted within 24 hours.

Compare current item

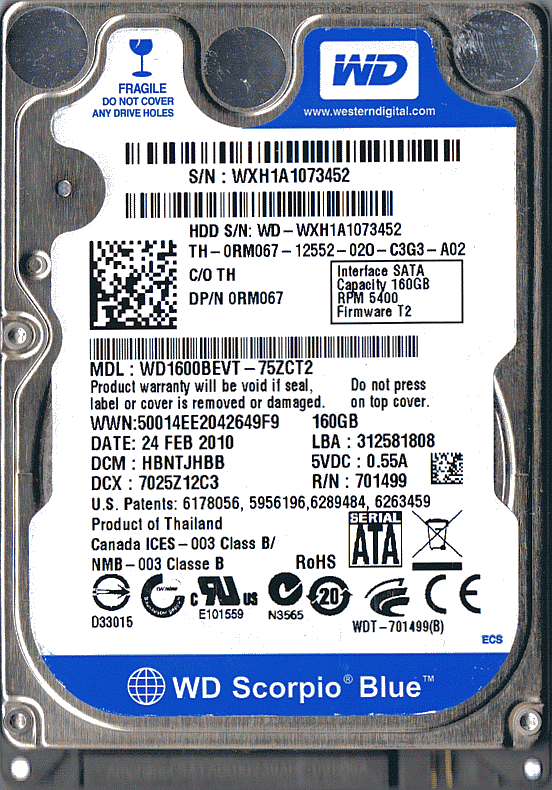

Thumbnail of Western Digital WD1600BEVT 75ZCT2 DCM HBNTJHBB RN 701499 PCB 2060 701499 005 SKU_D537.webp for sale. Click to access the details of this unique donor drive.
8
Used
ModelWD1600BEVT-°°ZCT°
Submodel75ZCT2
DCMHBNTJHBB
Made inThailand
SerialWXH1…
Head map0x03
Ref. D53735.00 CHF
