2.5 SATA  /  Western Digital  /  Blue (or no color)  /  Scorpio Blue  /   WD1600BEVT-°°ZCT°

WD1600BEVT-22ZCT0, DCM HHCTJHNB , Western Digital 160GB 2.5'' SATA hard drive

Compare donors

Denali
family
Other Denali's:

Short description

Unique references
Ref.:D1567
S/N: WXE0A79M9252
Condition and comments
8 View test report
A few bad sectors were detected after a whole surface check.
Operating time:166 days and 3 hours
Physical specifications
Format:2.5''
Thickness:9.5 mm
Weight:94 g

Head stack swap

Main informations
Model:WD1600BEVT-22ZCT0
Date:10 AUG 2009
Product of:Thailand
DCM • Drive Configuration Matrix
DCM:
on sticker
HHC
TJ
HNB
Configuration
1
platters		 2
physical heads

PCB & Firmware

Printed circuit board
PCB:2060-701499-005 rev. P1
Sticker, 1st block
Sticker, 2nd block
Sticker, 3rd block
Sticker, 4th block
Sticker, 5th block
Firmwares
Firmware:11.01A11

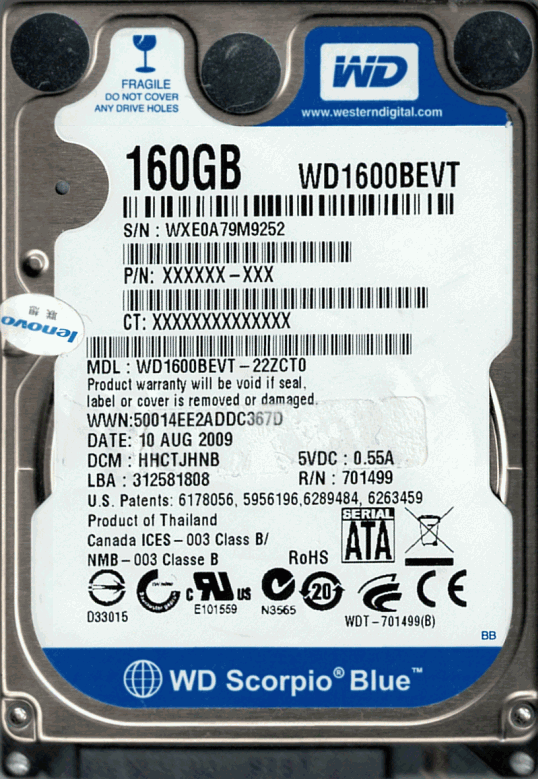

Picture of the product
Show product button
Show back face button
Product price : 23.–  CHF

Registered priority shipping to :

+    CHF
Total cost :    CHF
Pay in your currency with PayPal : Buy now
This product will be posted within 24 hours.

Compare current item

Thumbnail of WD Scorpio Blue WD1600BEVT 22ZCT0 DCM HHCTJHNB PCB 702499 005 REV P1 SKU_D1567.webp for sale. Click to access the details of this unique donor drive.
8
In use ~ 166 days
ModelWD1600BEVT-°°ZCT°
Submodel22ZCT0
DCMHHCTJHNB
Made inThailand
SerialWXE0…
Head mapunknown
Ref. D156723.00 CHF

 with 3 other items of the same model: Back to top
