2.5 SATA  /  Western Digital  /  VelociRaptor  /   WD1500HLFS-°°G6U°

WD1500HLFS-50G6U1, DCM EBCV2B , Western Digital 150GB 2.5'' SATA hard drive

Compare donors

Viking
family

Short description

Unique references
Ref.:D885
S/N: WXD1E7018749
Condition and comments
8 View test report
Operating time:465 days and 5 hours
Physical specifications
Format:2.5''
Thickness:15 mm
Weight:205 g

Head stack swap

Main informations
Model:WD1500HLFS-50G6U1
Date:16 NOV 2010
Product of:Malaysia
DCM • Drive Configuration Matrix
Head type:H
Media type:S
DCM:
on sticker
EBC
V2
B
DCM in ROM:
from MOD 0A
|||BSH3AB9
DCM in SA:
from MOD 02
S|B|L|PBMSHHC3RAVBK|UF
Configuration
1
platters
 2
physical heads
2
logical heads
Head map
Bug under review
The head map is displayed wrongly in some circumstances, especially when some heads are not in use.
We will fix this bug when we have more time to investigate it.
Please contact us if you need head map details. Thank you for your understanding.
#Heads
blue rect. = logical
MicroJogs
Hex. / Dec.
Preamp values
Hex. / Dec.
Head 0  089C / 2204
Head 1  0890 / 2192

PCB & Firmware

Printed circuit board
PCB:2060-701543-003 rev. B
Firmwares
Firmware:04.04V05
Format version:0x0002
Controller firmware version:01.84D
Servo firmware version:06.3L
Overlay firmware version:01.84D
Read channel firmware version:0521103B

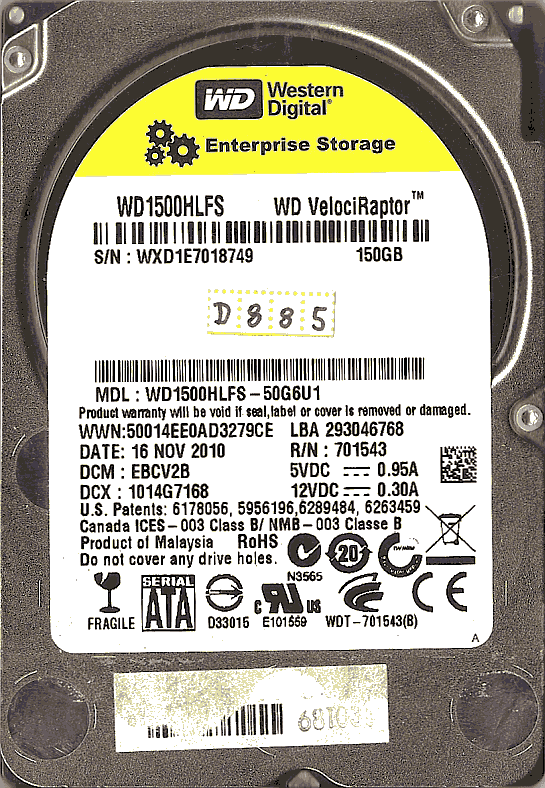

Picture of the product
Show product button
Show back face button
Product price : 10.–  CHF

Registered priority shipping to :

   CHF
Total cost :    CHF
Pay in your currency with PayPal : Buy now
This product will be posted within 24 hours.

Compare current item

Thumbnail of Western Digital WD1500HLFS 50G6U1 DCM EBCV2B PCB 2060 701543 003 REV B SKU_D885.webp for sale. Click to access the details of this unique donor drive.
8
In use ~ 465 days
ModelWD1500HLFS-°°G6U°
Submodel50G6U1
DCMEBCV2B
Made inMalaysia
SerialWXD1…
Head map0x03
Ref. D88510.00 CHF

 with 45 other items of the same model: Back to top
