3.5 SATA  /  Western Digital  /  WD Green & Caviar Green  /   WD10EARS-°°Y5B°

WD10EARS-00Y5B1, DCM HHNNHT2CAB , Western Digital 1TB 3.5'' SATA hard drive with bad sectors

Compare donors

Dragon Fly 2_PL4K
family

Short description

Unique references
Ref.:D1411
S/N: WCAV5U678213
Condition and comments
7 View test report
2 bad sectors
Operating time:564 days and 12 hours
Physical specifications
Format:3.5''
Thickness:25 mm
Weight:593 g

Head stack swap

Main informations
Model:WD10EARS-00Y5B1
Date:17 JUN 2011
Product of:Thailand
DCM • Drive Configuration Matrix
Head type:A
Media type:K
DCM:
on sticker
HH
NNH
T2
CAB
DCM in ROM:
from MOD 0A
|B|PKAZHQT
DCM in SA:
from MOD 02
S|BBLNPPMKHACZRHVQKSUS
Configuration
2
platters
 4
physical heads
4
logical heads
Head map
Bug under review
The head map is displayed wrongly in some circumstances, especially when some heads are not in use.
We will fix this bug when we have more time to investigate it.
Please contact us if you need head map details. Thank you for your understanding.
#Heads
blue rect. = logical
MicroJogs
Hex. / Dec.
Preamp values
Hex. / Dec.
Head 0  0C86 / 32060313320D / 51589645
Head 1  0C3A / 313001101305 / 17830661
Head 2  0C53 / 3155031A2007 / 52043783
Head 3  0C4C / 3148021D2205 / 35463685

PCB & Firmware

Printed circuit board
PCB:2060-771640-003 rev. A
Controller:Marvell 88i9045-TFJ2
HSA controllerSMOOTH L7251 3.1
Sticker, 1st block
Sticker, 2nd block
Sticker, 3rd block
Sticker, 4th block
Firmwares
Firmware:80.00A80
Format version:0x0002
Controller firmware version:15.3WF
Servo firmware version:06.08
Overlay firmware version:15.41F
Read channel firmware version:AA00R06b

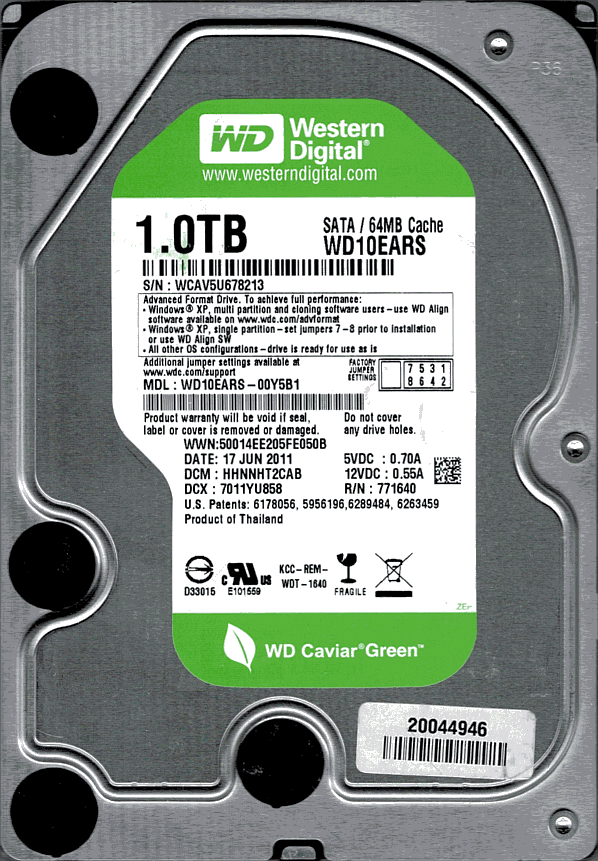

Picture of the product
Show product button
Product price : 49.–  CHF

Registered priority shipping to :

   CHF
Total cost :    CHF
Pay in your currency with PayPal : Buy now
This product will be posted within 48 hours.

Compare current item

Thumbnail of WD10EARS 00Y5B1 DCM HHNNHT2CAB SKU_D1411.webp for sale. Click to access the details of this unique donor drive.
8
In use ~ 564 days
ModelWD10EARS-°°Y5B°
Submodel00Y5B1
DCMHHNNHT2CAB
Made inThailand
SerialWCAV…
Head map0x0F / 0x0F
physical / logical
Ref. D141149.00 CHF

 with 1 other item of the same model: Back to top

Drives 1 to 1
previous slide next_slide
