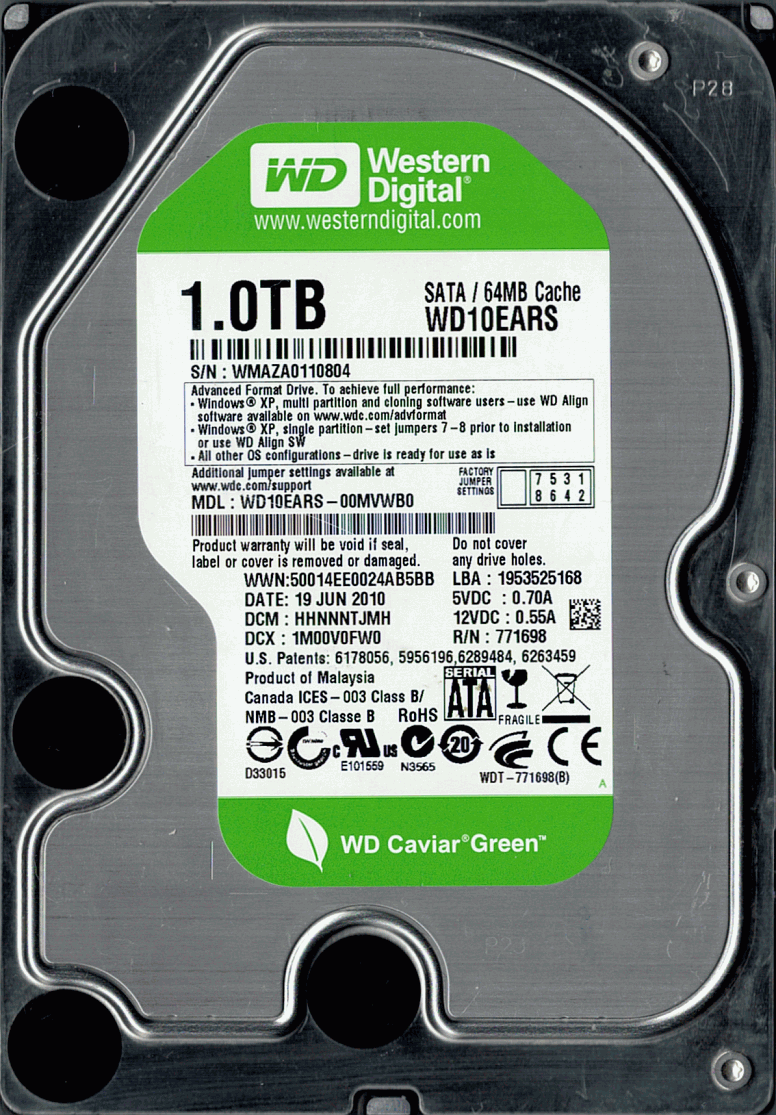

WD10EARS-00MVWB0, DCM HHNNNTJMH, Western Digital 1TB 3.5'' SATA hard drive

Sadle Back G6
family
Other Sadle Back G6's:

Short description

Unique references
Ref.:D1007
S/N: WMAZA0110804
Condition and comments
8View test report
Operating time:301 days and 14 hours
Physical specifications
Format:3.5''
Thickness:25 mm
Weight:600 g

Donor matching guide


Essential.

Fast always necessary.

Optional. Further increase compatibility

Usually not a factor.
For dates, the closer the better.

Head stack swap

Main informations
Model:WD10EARS-00MVWB0
Date:19 JUN 2010
Product of:Malaysia
DCM • Drive Configuration Matrix
Head type:8
Media type:K
DCM:
on sticker
HH
NNN
TJ
MH
DCM in ROM:
from MOD 0A
|T|FK82GFT
DCM in SA:
from MOD 02
S|BTLNPFMKH8C2RGVFKSUM
Configuration
3
platters
 6
physical heads
5
logical heads
Head map
Bug under review
The head map is displayed wrongly in some circumstances, especially when some heads are not in use.
We will fix this bug when we have more time to investigate it.
Please contact us if you need head map details. Thank you for your understanding.
#Heads
blue rect. = logical
MicroJogs
Hex. / Dec.
Preamp values
Hex. / Dec.
Head 0  0C2A / 3114
Head 1
Head 2  0C25 / 3109
Head 3
Head 4
Head 5  0D3A / 3386

PCB & Firmware

Printed circuit board
PCB:2060-771698-002 rev. P2
Controller:Marvell 88i9146-TFJ2
HSA controllerSmooth L7251
Sticker, 1st block
Sticker, 2nd block
Sticker, 3rd block
Sticker, 4th block
Sticker, 5th block
Firmwares
Firmware:50.0AB50
Format version:0x0002
Controller firmware version:51.6EA
Servo firmware version:0B.1M
Overlay firmware version:51.6EA
Read channel firmware version:AA01Ja37
Product price : 89.–  CHF

Registered priority shipping to :

   CHF
Total cost :    CHF
Pay in your currency with PayPal : Buy now
